Friday, November 26, 2010

First Engine Crank – 1 Hour



The original plan was to start the engine at Thanks Giving, unfortunately work has got in the way, really cannot complain, after all its work that pays for this car.

With the engine and dash wiring complete it was time to crank the engine over, first the clutch neutral tested for functionality and the area around the engine bay was checked for loose wires and other debris. As you can see from the video, the test went to plan.

The new engine start date is December 23rd, a fitting date as this will be 1 year since the car was delivered. This leaves plenty of time to mount the FAST EFI computer, hook up the fuel line, and add a charcoal filter.

Please enjoy the video, it made my Thanks Giving.

Dashboard Wiring – 5 Hours

Don’t you just wish you had listened back then in college! It’s a little over 30 years since I attended electrical classes and the grey matter was tired then, or maybe just hung over. Anyway completed the dashboard wiring and installed the dash back in the car.

Decided to stick with the Ron Francis dash wiring loom although did use a terminal block to simplify the wiring for the gauges, horn, and dashboard turn and main beam lights.

Tried to stick with 3 main cable runs, the upper cable run consists of the gauge feed and illumination pigtails, the cable run below the 2 lower gauges is for the horn, turn and main beam dash lights, this left room for the dash harness to run at the bottom of the dashboard.

The light grey cables running off to the right are permanent gauge calibration and setting feed wires which are terminated at a panel which can better be seen at the bottom of the installed dash board picture. This panel will be mounted to the right of the fuse panel to allow easy access to re-set the trip, clock and calibrate the speed and fuel gauges.

Once the dash was mounted back in the car, the fan and ignition were connected back up, as were all the gauge sender units. So far everything remains plug and play for easy installation and removal of the dash.

Sunday, November 21, 2010

It’s the small stuff that takes the time – 10 Hours

Having spent most of the weekend in the garage, it’s not until you add up all that was achieved that you realize were the time goes.

With the panels back from the powder coater the dash filler was permanently installed, along with the fuse panel support and the passenger foot box filler pieces.

Switching to wiring, the dash harness ground was drilled the powder coating removed before installing the lug and coating the assembly with dielectric grease, both to maximize the grounding conductivity but more importantly inhibiting rust.

The inertia switch was mounted to the left of the filler panel; beading was run around the dash filler to stop cable fraying.

Clutch neutral wires were extended to reach the neutral switch at the rear of the transmission; the speed sensor plug was also spliced into the wiring loom. The brake switch connection was also made.

Moving to the engine bay the O2 sensor connector was mounted to the chassis, the positive battery cable was run to the disconnect switch. The one wire alternator cable was also run to the same side of the disconnect switch via a mega fuse.

FAST EFI manual instructs running the positive and negative cables directly to the battery, thus terminal connections were made and the two wires installed in cable loom.

You may have noticed that all the wiring is specific to first engine start, over the next few days all engine wire will be completed (coil, starter), along with dash gauges, and ignition switch. Current plan is to at least crank the engine at Thanks Giving, with first engine start set for December 23rd, one year since the kit first arrived!

Saturday, November 13, 2010

Final Installation of Radiator – 4 Hours

Also this week, the 2nd batch of panels was powder coated, including the radiator shroud. This meant that the radiator could be permanently installed and the coolant hoses, cut, fitted, and bent to shape.



Ideally the radiator mount should account for vibration and not be a sold connection to the frame as this can lead to premature failure. To account for this the fan was mounted to the shroud using rubber washers, a 1/8” thick by ¾” wide rubber strip was used between the shroud flange and the radiator, the same rubber strip was used between the radiator and the fame.

The Breeze lower radiator support uses rubber hose to provide a vibration mound at the base of the radiator. As per Breeze instructions the radiator angle was set at 51 degrees to the horizontal.

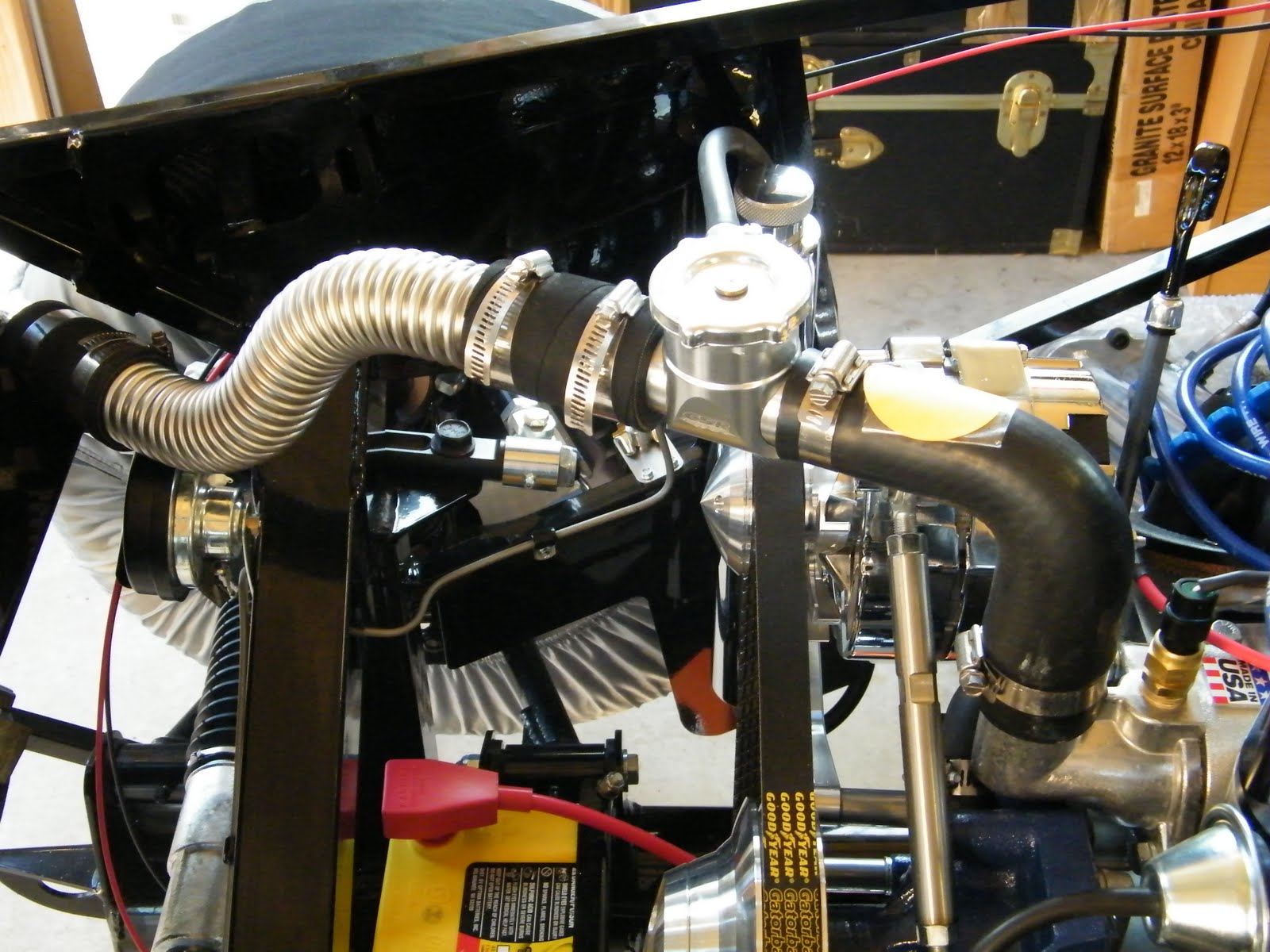

Factory Five provide a length of corrugated stainless steel hose which requires cutting to length, and formed to fit. The upper hose needed bending into a simple S shape to accommodate the vertical displacement between the radiator and the billet coolant filler.

Routing of the lower hose is more involved, first clearing the chassis and then running the hose under the X member and over the 4” round chassis cross member before connecting to the engine. As this is a long run and a customer cushion mount will be manufactured to connect this hose to the underside of the X member.

TIP of the week: Many complain that the corrugated hose does not seal with the rubber joint, the hose should go into the rubber joint about 1 ½” the hose clamp needs to seal on the outer corrugation, by measuring the pitch the distance between 3 serrations is ¾” using this the hose clamp can be positioned correctly. Of course this won’t be validated until first engine start!

Passenger Side Header, Exhaust and O2 Sensor – 2 Hours

Earlier in the week the O2 bung was TIG welded to the passenger side header, per FAST EFI instructions the O2 sensor need to be at least 20” from the cylinder head and at an angle greater than 10 degrees above horizontal. This is to stop moister collecting and rusting out the sensor.

A ¾” hole requires drilling in the header prior to welding in the O2 bung.

As with the driver’s side, the header was mounted using Stage 8 bolts and fasteners. When the exhaust was mounted and checked for parallelism to the frame and horizontal to the floor it was found that the passenger exhaust flares outwards by 1” over the length of the exhaust.

It was too much to expect that both would be perfect. This alignment is easily fixed with a tapered wedge from Breeze Automotive (see web links).

Sunday, November 7, 2010

Which wire goes were! – 4 Hours

Started the wiring process in earnest today, the Optima 51 battery was mounted in the Breeze front battery box and the negative cable was run directly to the engine block. A good location for this is a starter mounting bolt.

All quality automotive vehicles have the negative connected directly to the engine, a ground cable is then run to the chassis (see October 10th post – Headers and Exhaust).

The solenoid was then mounted to the driver’s side of the transmission tunnel, those who are reading this and have yet to mounted the engine will find this easier pre engine installation. This location was chosen as it is next to the battery cut off switch (also installed today) and next to the drivers foot box cable opening (the clutch neutral circuit will be used on this build and will be connected to the S terminal to engage the starter).

Two solenoids will be used on this build; the starter motor also includes a solenoid (as is found on many 90’s Mustangs).

A positive cable was run from the battery post to the battery cut off switch, a 10 gauge wire was run from the alternator to a Mega fuse and then to the same terminal of the battery cut off switch. A single cable will then be run from the other side of the battery cut off switch to the large solenoid post.

The Ron Francis stock harness assumes a 3G alternator so with a bit of wiring diet activity the 10 gage cable (labeled Alternator FD) was removed along with Alternator IGN (brown) cable and 3G alternator connectors.



Finally a number of other panels were removed for powder coating this week (radiator shroud, dash filler, fuse mounting plate, and one under door panel).

Parking / Emergency Brake – 1 Hour

Fitted parking brake (or hand brake as we would call it in England). The unit supplied is a standard Ford stock item and as the parking brake indicator will not be used this sensor was removed, as was the rubber boot from the cable linkage which fits through a hole in the floor on a stock Mustang.

Some of alterations were required, a small tab on the TKO600 gearbox was cut off to clear the linkage mechanism, and similarly the mounting bracket required slight surgery to clear the ratchet. Finally the tab which operates the parking brake indicator light required filing to clear the mounting braked at full stroke.

Note: Do not pull the horse shoe pin until you have mounted the parking brake for the last time as this releases the automatic adjuster to take up slack in the system. The standard Mk3.1 emergency brake cables supplied are for a drum brake setup and so as you can see from the picture reach past the T bar. At build school the recommendation was to purchase two 94 or later cables (left / drivers) side is shorter and typically cheaper.
